The X Y Oscilloscope uses Stereo Input.

Left Input channel affects X axis and right input channel affects Y axis.

Playing sine wave in left channel and cosine wave in right channel draws a circle.

Works Best with Windows 10 and Edge browser (it's true).

Open 'Privacy' Settings from the Cortana input.
Allow Microsoft Edge to access Microphone
Open 'Sound' settings from the Cortana input box.
Manage 'Recording Devices' to select desired audio input, stero input preferred.
Refresh Oscilloscope Page in Edge Browser, Press 'START' button and allow website to access your microphone.
Make some noise

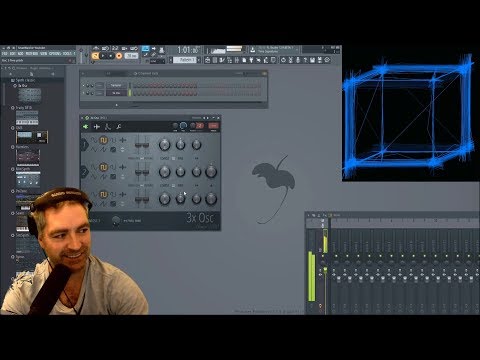

Tutorial of the Oscillioscope setup and drawing shapes with sound

Source code at https://github.com/Sean-Bradley/Oscilloscope
